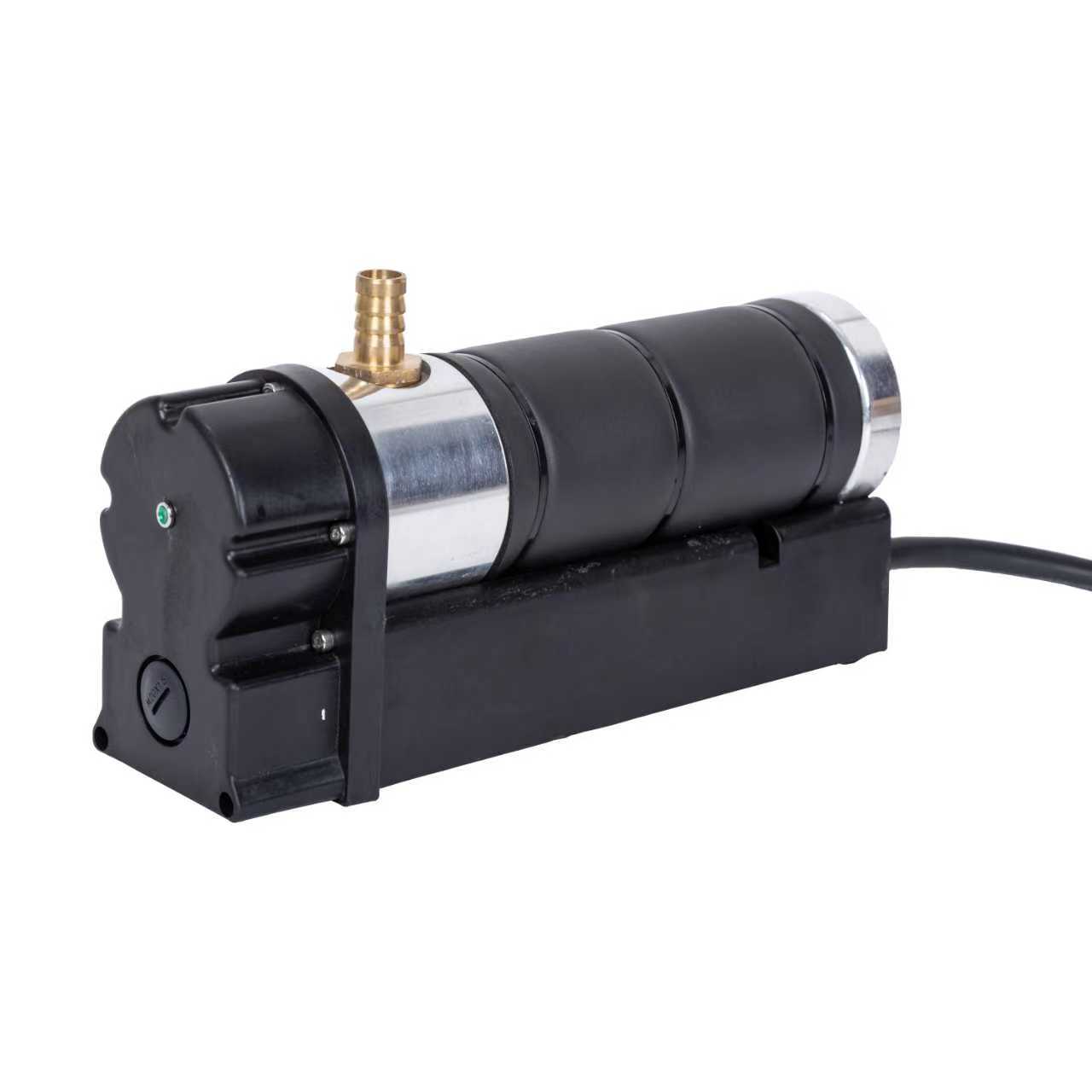

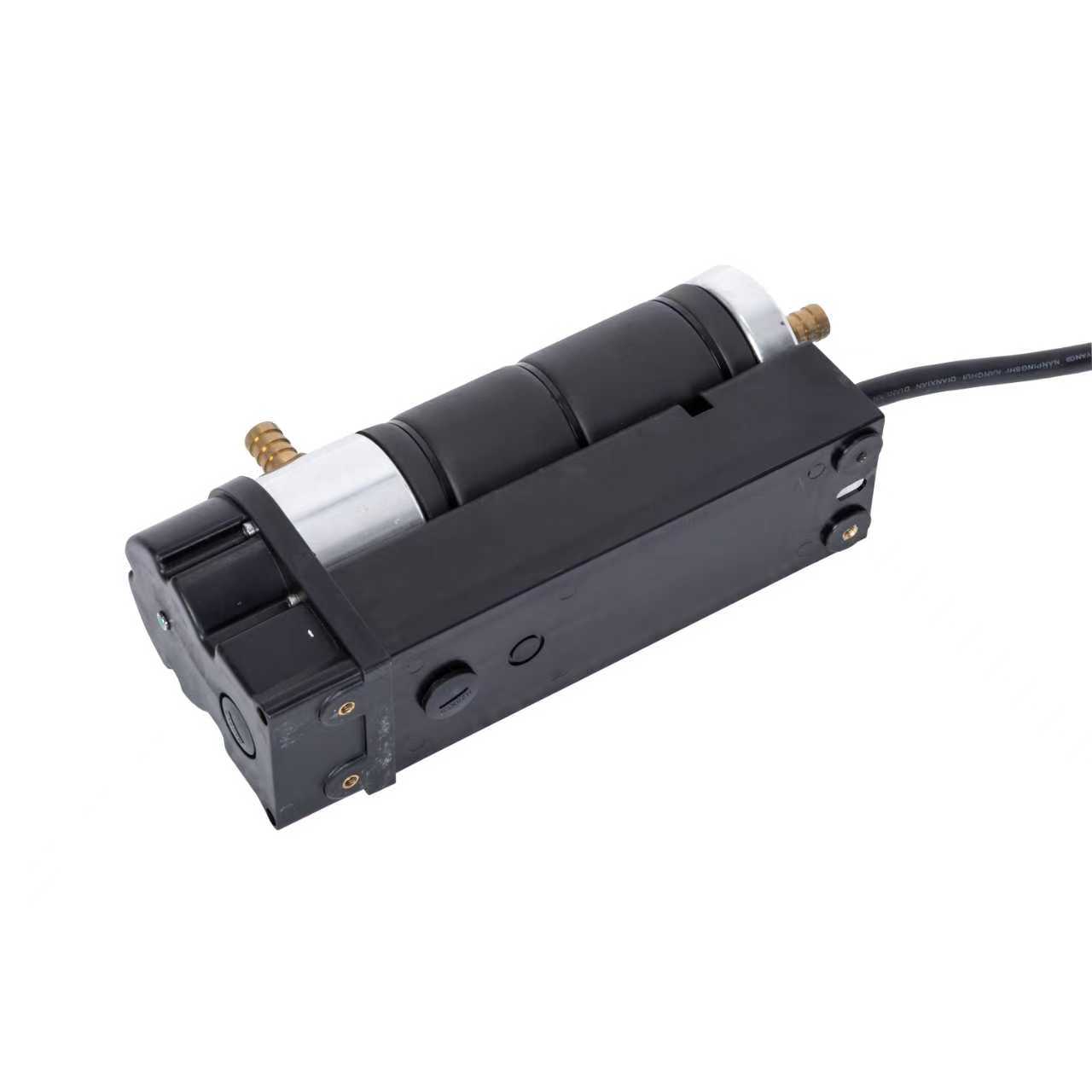

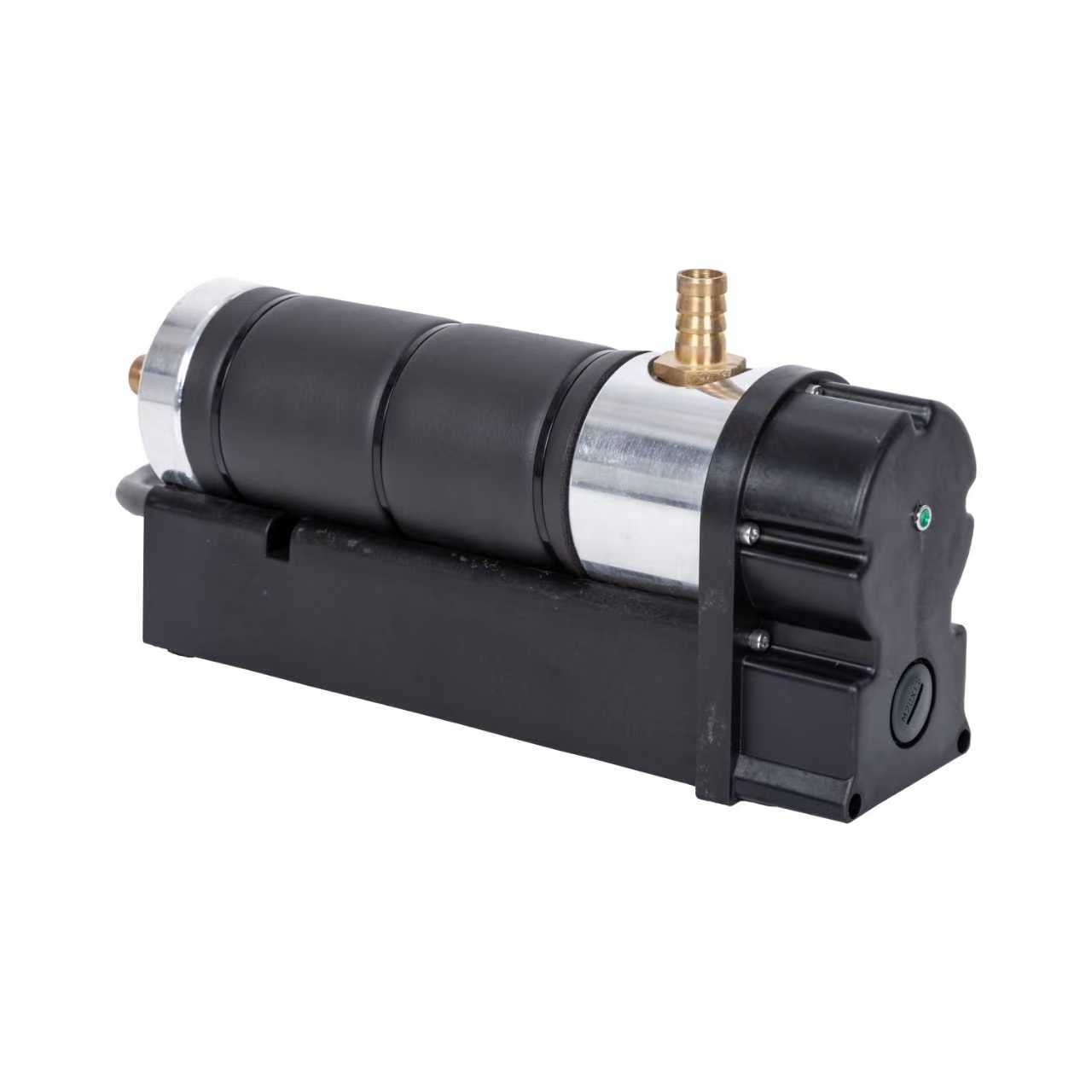

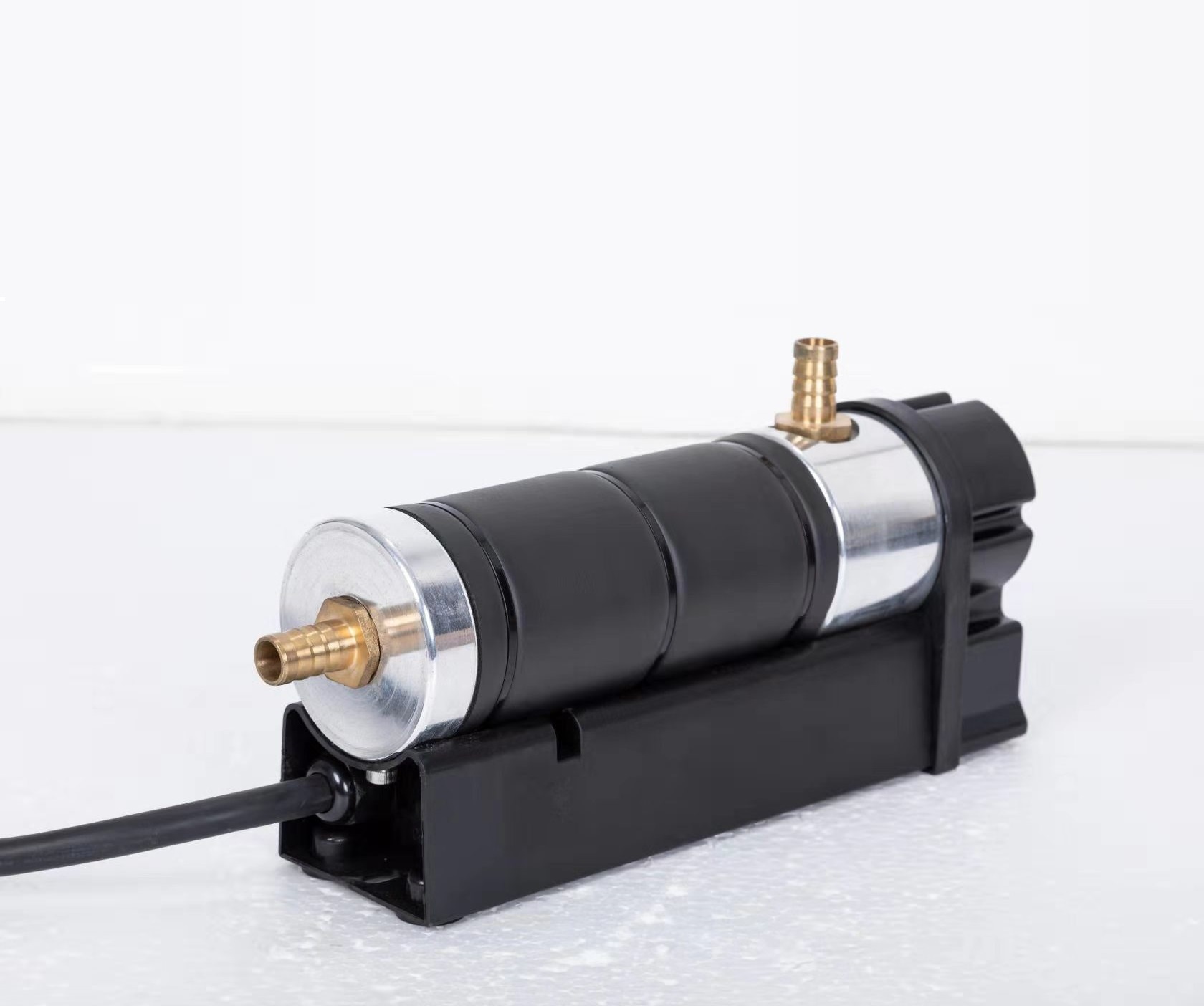

Thermostart H2 Self-Circulation Engine Heater without Pump
Thermostart H2 Self-Circulation Engine Heater without Pump
Thermostart H2 Self-Circulation Engine Heater without Pump
Thermostart H2 Self-Circulation Engine Heater without Pump
Thermostart H2 Self-Circulation Engine Heater without Pump
Thermostart H2 Self-Circulation Engine Heater without Pump

Thermostart H2 Self-Circulation Engine Heater without Pump

The Thermostart H2 Self-Circulation Engine Heater without Pump is an electric coolant heater or circulation heater for various water-cooled engines. When the coolant is heating, it will be pushed to the top of the engine by a thermosiphon. Therefore, no matter what the ambient temperature, the engine can easily achieve a full-power start and effectively avoid cold start mechanical damage. It can be widely used for diesel gensets, gas gensets, or large equipment with diesel engines.

  • Voltios :

    230/115V
  • Regulación del termostato de arranque :

    35-50℃(95-122°F)
  • Vatio :

    2000,2500,3000,4000W
  • Diámetro de entrada/salida :

    3/4"(19mm)
  • Hz :

    50/60Hz
  • Pedido MOQ :

    50PCS

Thermostart H2 Self-Circulation Engine Heater Without Pump



The ThermoStart H2 Self-Circulation Engine Heater Without Pump is an electric coolant preheater without a water pump, suitable for all types of water-cooled engines. The coolant is heated and then run through the engine by a thermosiphon process to preheat the engine. This ensures an easy full power start, regardless of the ambient temperature, and avoids mechanical damage in a cold start. ThermoStart preheaters are suited for all industrial and marine applications, both stationary and mobile. These heaters are very compact, maintenance free and easy-to-install. The system has the following advantages: fuel savings, decreasing pollution, reduced engine wear, no more difficult cold starts, and vehicle cab heater instantly operational.



Products Features:

Heating Unit

·Cast aluminum housing

·PA66 electrical covers and support base

·Available with 1.5m power cord

·Heating element made of  incoloy 800H

·Integrated mounting holes



Circulating Pump



·Circulation centrifugal pump

·Flow rate:2M/h

·Lit head:3m



Available Power

· 2.0 to 4KW

·120,230,240V ·50 or 60Hz



Safety Thermostat

.110℃ Safety thermostat with

. manual reset rated at 25A to protect

. the heating element when coolant



Regulating Thermostat

.35-50°C(95-122°F)



.20-40°C(65-104°F)



ThermoStart H2 Self-Circulation Engine Heater Without Pump Electric Coolant Preheater





Technical Data:

Model

Hz

Volts

Phase

Watt

Regulating Thermostat

Safety Thermostat

Cord Length

Plug Type

Inlet/OutLet Diameter

WS 2000R

50/60

230/115

1

2000

35-50℃

110℃

1.5M

Blunt 3 Wire

3/4"(19mm)

WS 2500R

50/60

230/115

1

2500

35-50℃

110℃

1.5M

Blunt 3 Wire

3/4"(19mm)

WS 3000R

50/60

230/115

1

3000

35-50℃

110℃

1.5M

Blunt 3 Wire

3/4"(19mm)

WS 4000R

50/60

230/115

1

4000

35-50℃

110℃

1.5M

Blunt 3 Wire

3/4"(19mm)



Benefits:

·The Self-circulating coolant heater makes engine starts at full load

·Reduction of fuel consumption for engine

· Reduces engine wear & stress on hoses & fittings

· Lower emissions during startup



Applications:

· Diesel Gensets

· Gas Gensets

. Industrial Engine Applications

.Tuck or other vehicles



Heater Assembly:

assembly of H2 thermostart self-circulation engine heater without pump

1. Circulating water pump

2. Overheat safety thermostat

3. Regulating thermostat

4. Fixingbracket

5. Support base

6. Electric box

7. Heating element

8. Casting aluminum tank

9. Thermal insulation material

Each thermostat will be tested before shipment and has a quality warranty of 2 years.



Installation Diagram & Dimension:

installation for ThermoStart H2 Self-Circulation Engine Heater

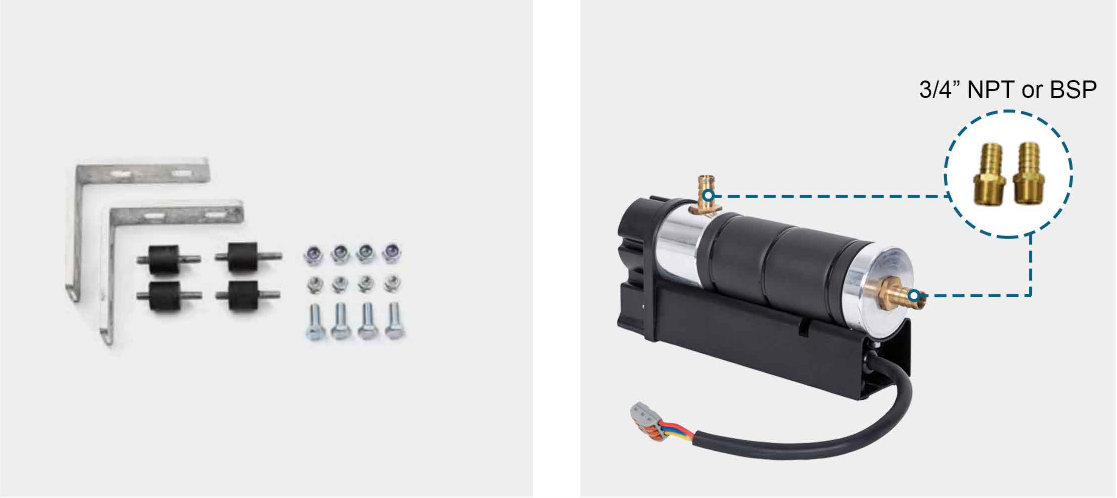

Products With Mounting Kit and Accessories

The outlet size could be customized by NPT or BSP standard.

Products With Mounting Kit and Accessories
