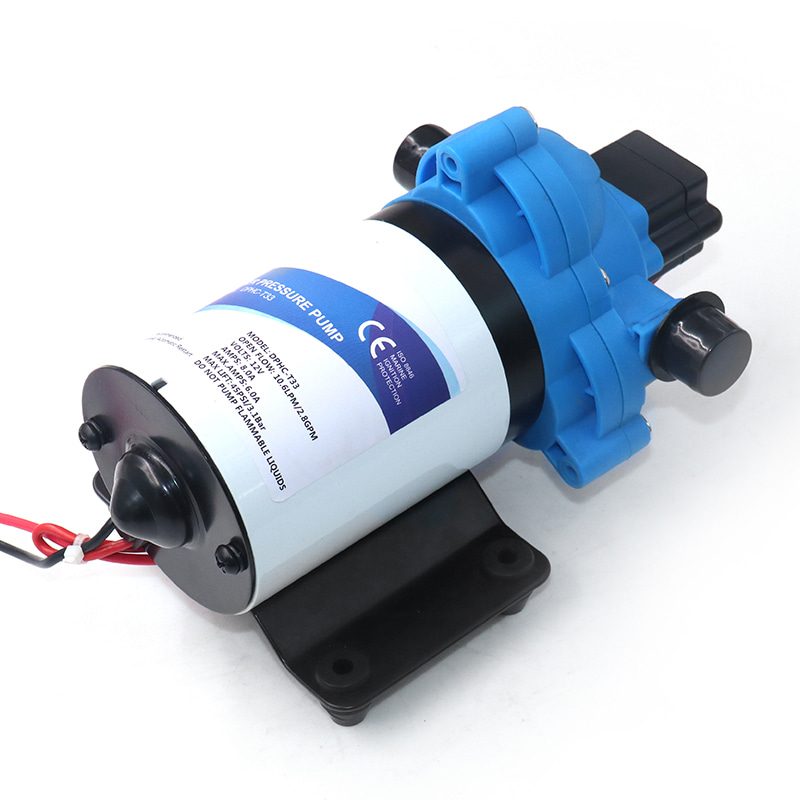

F33 12V/24VDC Self-priming Diaphragm Water Pressure Booster Pump

F33 12V/24VDC Self-priming Diaphragm Water Pressure Booster Pump

The F33 12V/24VDC self-priming diaphragm water pressure booster pump offers customizable options, delivering reliable self-priming performance and stable water pressure for industrial, agricultural, and commercial applications.

Servicio personalizado :
Yes ( Color of pump; Logo; Unit box/ User manual )
Voltaje/Hz :
12V; 24V DC
Garantía :
12 Months
Fluir :
2.0/ 2.8/ 3.0/ 3.3/ 3.5/ 4.0 GPM

Inquire Now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

F33 12V/24VDC Self-priming Diaphragm Water Pressure Booster Pump

Technical Data:

Model	Volt	GPM	LPM	(PSI/BAR)	N.W/G.W (KG)
F33-101-045	12V/24V	2.0	7.6 L/Min	45/3. 1	1.9/2.2
F33-101-045A	12V/24V	2.8	10.6 L/Min	45/3. 1	1.9/2.2
F33-102-045	12V/24V	3.0	11.6 L/Min	45/3. 1	1.9/2.2
F33-102-045-A	12V/24V	3.3	12.5 L/Min	45/3. 1	1.9/2.2
F33-102-045-B	12V/24V	3.5	13.5 L/Min	45/3. 1	1.9/2.2
F33-103-045	12V/24V	4.0	15.0 L/Min	45/3. 1	1.9/2.2

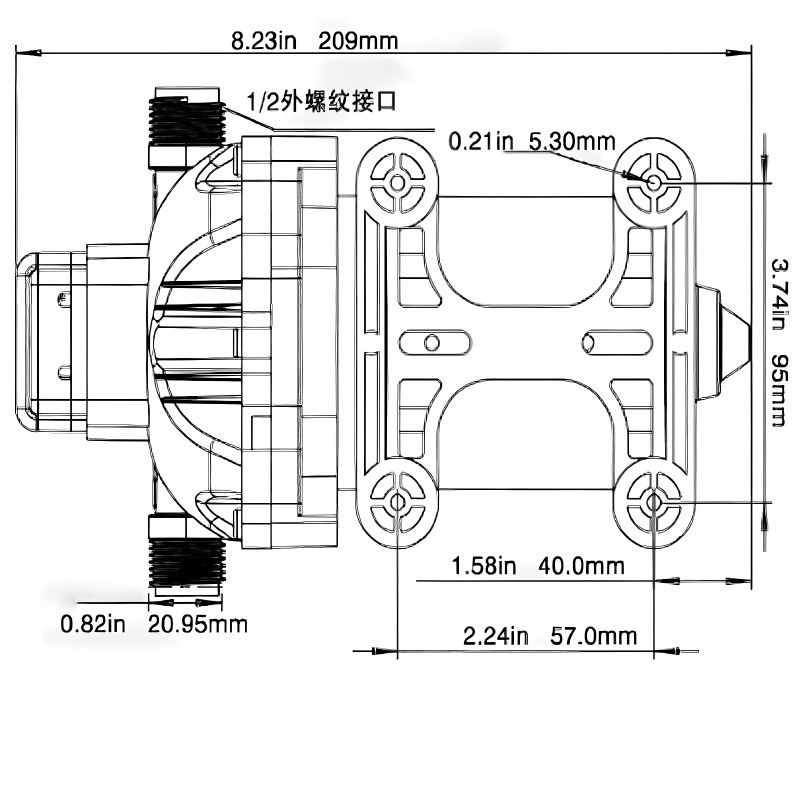

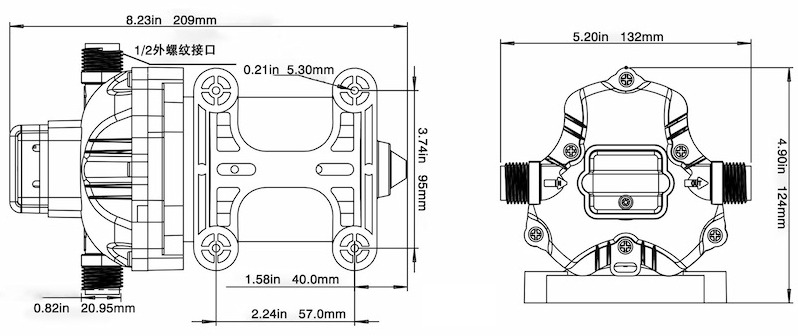

Dimension for 12v/24v Version

Dimension for 12v/24v Version

Product Features

This self-priming diaphragm water pressure booster pump can supply 2–3 fixtures and offers a customizable flow rate from 2.0 to 4.0 GPM. It is self-priming, supports on-demand use, and features an industry-standard mounting pattern with a fully rubber mounting base for reduced vibration. The adjustable pressure switch allows precise control, and the 16 AWG leads (4.5" / 11.4 cm) ensure easy electrical connection.

Best Material

Shell Material: Nylon / Polyethylene

Sealing Material: EPDM / Viton

Diaphragm Material: Santoprene

Wiring: Double Core Wire

Motor: Copper Wire

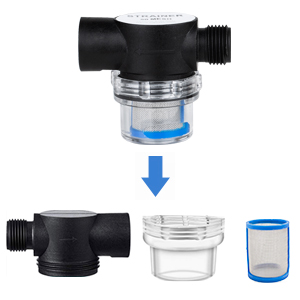

Filter

The filter can be removed for cleaning.

Tip: The diaphragm pump can only be used to pump clean water. If the liquid contains impurities, please install a filter at the inlet.

2PCS Hose

Inlet/Outlet: 1/2"Threaded MNPT

External thread, provide a variety of sizes and installation methods joints, convenient to connect to any outlet.

Usage Of The Pump

Reliable pump for RV water systems, providing consistent pressure for showers, sinks, and onboard water needs.

Yacht

Ensures steady water flow on yachts, supporting all onboard applications with dependable performance.

Agricultural Irrigation

Delivers stable pressure for irrigation systems, ensuring efficient and uniform water supply for crops.

Faucet

Ideal for household faucets, maintaining consistent water flow for kitchens, bathrooms, and other indoor uses.

Packing Information

Unit N.W/ G.W	1.9 / 2.2 KG
Unit Box Size	29.914.612.8 cm
Master Carton Size	463128 cm
Master Carton G.W	13.9 KG

We conduct comprehensive testing on every pump unit before shipment. Our products are CE certified, ensuring reliable performance. Welcome to order！
