DC 12V 24V 55PSI High Flow 4 Chamber Diaphragm Water Pressure Pump
DC 12V 24V 55PSI High Flow 4 Chamber Diaphragm Water Pressure Pump
DC 12V 24V 55PSI High Flow 4 Chamber Diaphragm Water Pressure Pump
DC 12V 24V 55PSI High Flow 4 Chamber Diaphragm Water Pressure Pump
DC 12V 24V 55PSI High Flow 4 Chamber Diaphragm Water Pressure Pump
DC 12V 24V 55PSI High Flow 4 Chamber Diaphragm Water Pressure Pump

DC 12V 24V 55PSI High Flow 4 Chamber Diaphragm Water Pressure Pump

The F42 DC 12V or 24V Booster pump is our general-duty on-demand positive displacement pump. It provides reliable performance in high water flow, moderate pressure applications. Designed by 4 stronger chambers, the pump could provide up flow from 2.0 to 5.5 GPM and is capable of self-priming up to 6 vertical feet, and can run dry without damage. Serves 3 or more 1/2” (13 mm) outlets. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops when the faucet is opened and closed. They're easy to install, service and winterize.

  • Servicio personalizado :

    Yes ( Color of pump; Logo; Unit box/ User manual )
  • Voltaje/Hz :

    12V; 24V DC
  • Garantía :

    12 Months
  • Fluir :

    2.0/ 3.0/ 3.3/ 3.5/ 4.0 / 4.5/ 5.0/ 5.5 GPM

DC 12V 24V 55PSI High Flow 4 Chamber Diaphragm Water Pressure Pump



Products Features:

With self-priming function and continuous duty

Constant flow rate from 2.0 to 5.5GPM

Setting pressure by 55PSI, up to 70Psi.

Run dry safe protection

Quiet operation with low noise

Industry Standard mounting pattern, with completely rubber mounting-base

Internal bypass technology reduces cycling.

16 AWG, 9.4"(23.8 cm) long leads

Quality warranty: 1 Year



Technical Data:

Model

Volt

GPM

LPM

(PSI/BAR)

N.W/G.W (KG)

F42-100-055

12V/24V

2.0

7.6L/Min

35/2.4

2.0/2.3

F42-101-055

12V/24V

3.0

11.3L/Min

55/3.8

2. 1/2.4

F42-101-055-A

12V/24V

3.3

12.5L/Min

55/3.8

2. 1/2.4

F42-101-055-B

12V/24V

3.5

13.5L/Min

55/3.8

2. 1/2.4

F42-102-055

12V/24V

4.0

15.0L/Min

55/3.8

2.6/2.9

F42-102-055-A

12V/24V

4.5

17.0L/Min

55/3.8

2.6/2.9

F42-103-055

12V/24V

5.0

18.9L/Min

55/3.8

2.6/2.9

F42-104-070

12V/24V

5.5

20.8L/Min

70/4.8

2.6/2.9

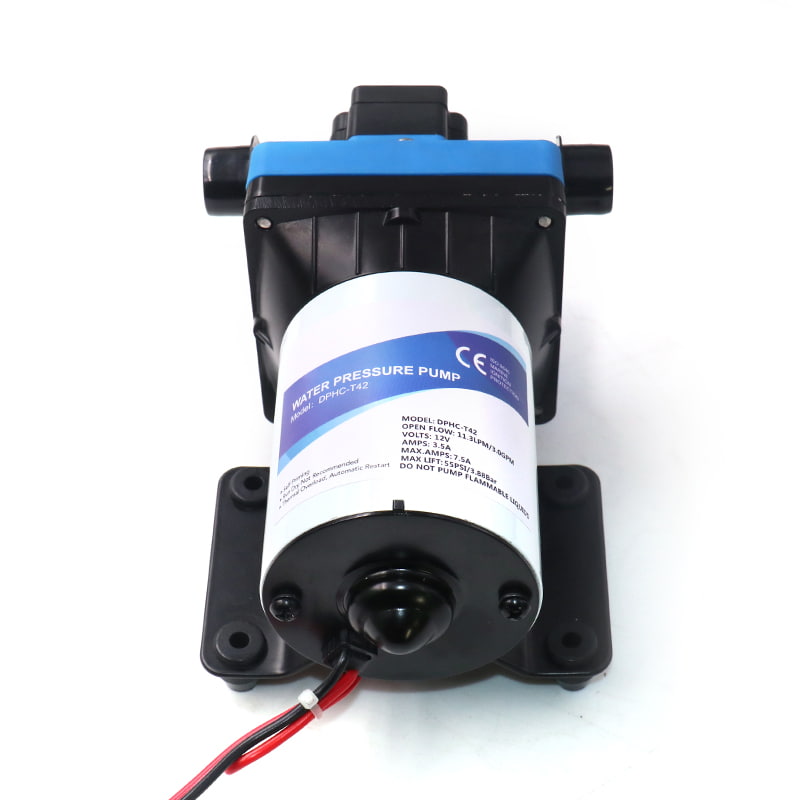

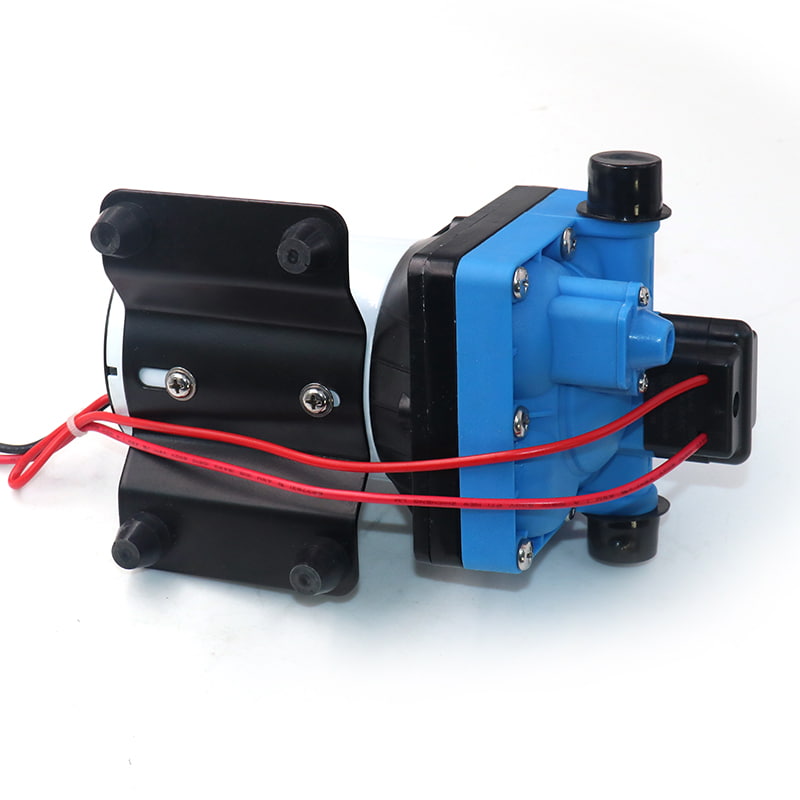

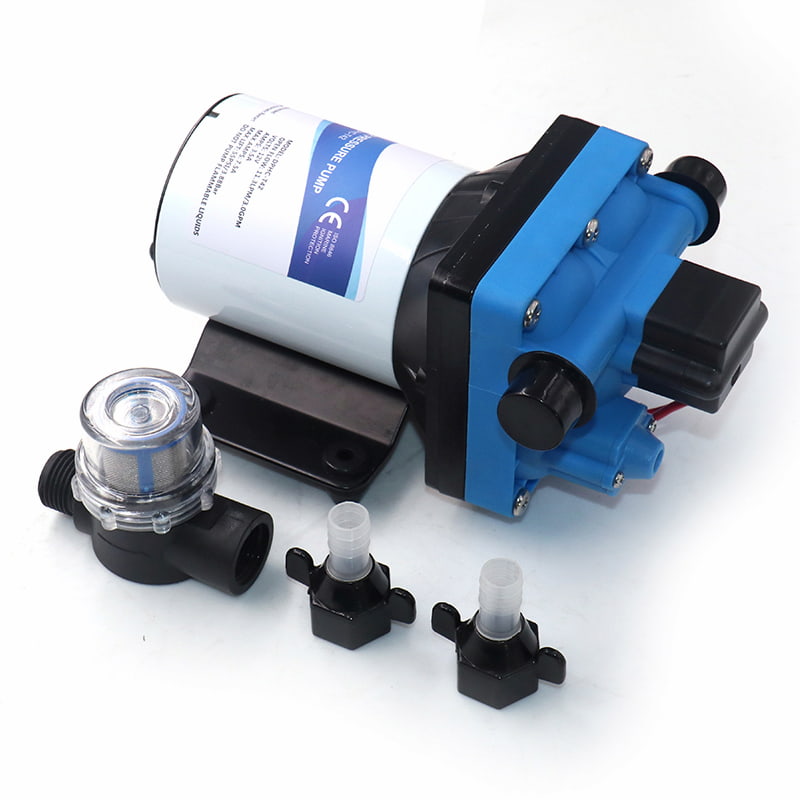

Products Display:

f42 diaphragm pump



High Quality Material:

. EPDM/VITON for sealing

. SANTOPRENE for diaphragm

. Nylon / Polyethylene for shell of pump

. Pure cooper wire motor

. Double core copper wire for connection



Quality material for F42 diaphragm pump



Dimension:

pump Dimension



Usage:

The pump could be widely using for RV, Boat, Water supply and Irrigation

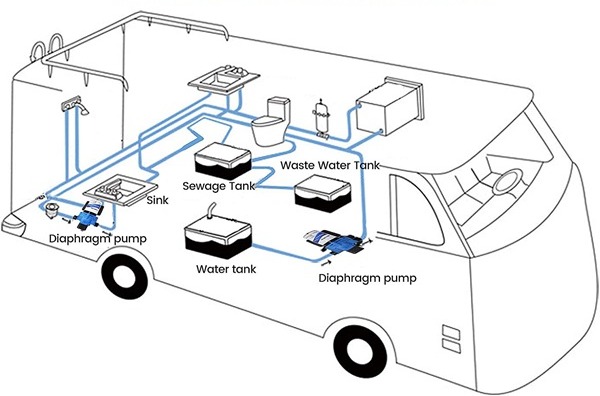

The following photo is to show you how to install on the RV,

The diaphragm pump will connect the water pipe and each RV could be installed 2 set of pump.

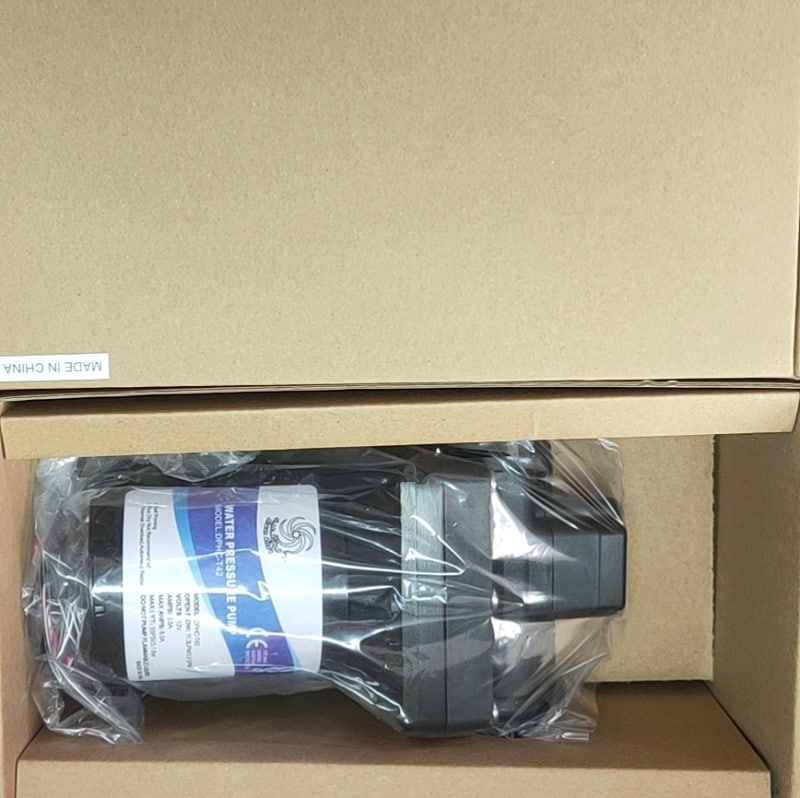

Packing Information:

Unit N.W/ G.W 1.95 / 2.3 KG
Unit Box Size 29.2 x 13.5 x 12.7 cm
Master Carton Size 48*32.5*29  cm
Qty/Carton 6 Pcs
Master Carton G.W 13.9 KG
