Low Noise Bottled Water Dispensing System BW5000

Low Noise Bottled Water Dispensing System BW5000

As a bottled water pump supplier, the MASTER EAGLE's BW5000 bottled water system is one of our newest design water dispensing system, compare with the last 2 generation BW1000 and BW2000 series, the 5000 series water dispenser with high quality, low noise, and constant flow advantages. The Bottled Water Dispenser Pump can quietly and reliably supply bottled water at 0.6 GPM (2.3 LPM) to espresso machines, coffee makers, tea makers, refrigerators, ice machines, water dispensers, and more.

BW Series Model and Specifications As Follows:

Product Features:

1. Suitable for 5 Gallon Bottle Water

The BW5000 series bottled water dispensing system is applicable for 5 gallon water bottle, working as ideal fresh water dispenser pump for refrigerator, ice maker, espresso machine and counter top faucet (this item is not including a faucet).

2. Automatic Dispensing System For Water Supply

The automatic design dispensing system provides 2.8bar (40 PSI) strong suction and 1 GPM (3.78LPM) high flow. Dry pumping protection: Automatic shut off when water drains, restart when bottle refilled. Muffle working.

3. Long Life Motor and High quality Diaphragm Pump

The system with Runs dry without damage, extending the life of the pump; the long life motor ensures years of reliable operation.

4. Wide Voltage with Standard AC Plug

The BW5000 water dispensing pump with 110-230V AC wide voltage; 50 or 60Hz；

The standard UK, EU, US Plug will be providing according different market.

Application：

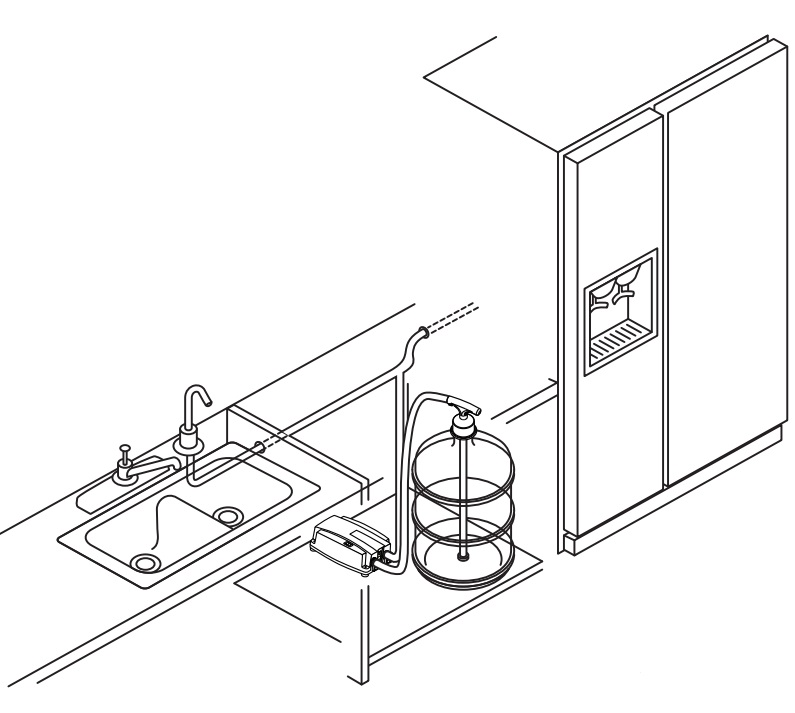

The BW5000 pump with quick disconnect ports allows for easy wand replacement in seconds. It can be widely Suitable for American refrigerators or other refrigerators with ice making function

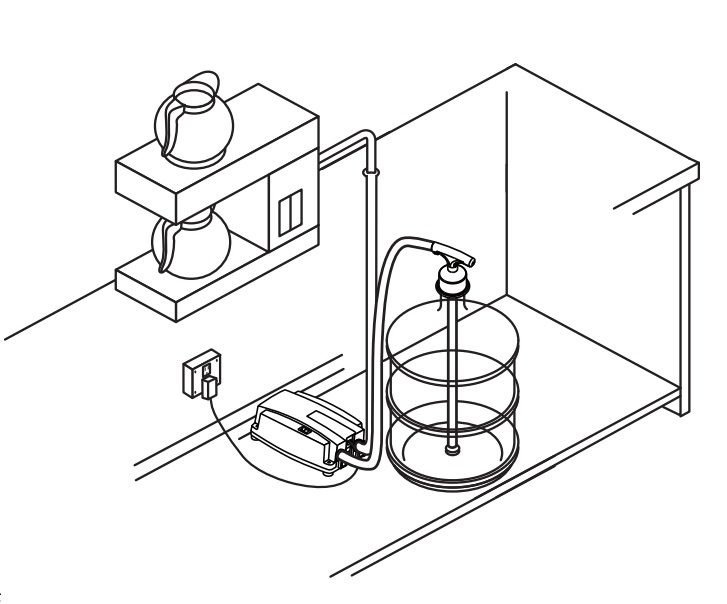

The BW5000 also suitable for the Coffee cart/Machine Coffee dispenser/ Beverage System, Drinking Water supply. It can be easily to installed under the working table, With the automatic floating sensor, to detects the water in the bucket in real time. Control the water supply by faucet or switch of beverage machine.

Notice:

1, please fill water in the pump manually after long time unused to restart the pump. Please check when the pump not working.

2, If you've received a new pump with water in, it's normally because of pumping test instead of stain of use. As we tested every product before sales.

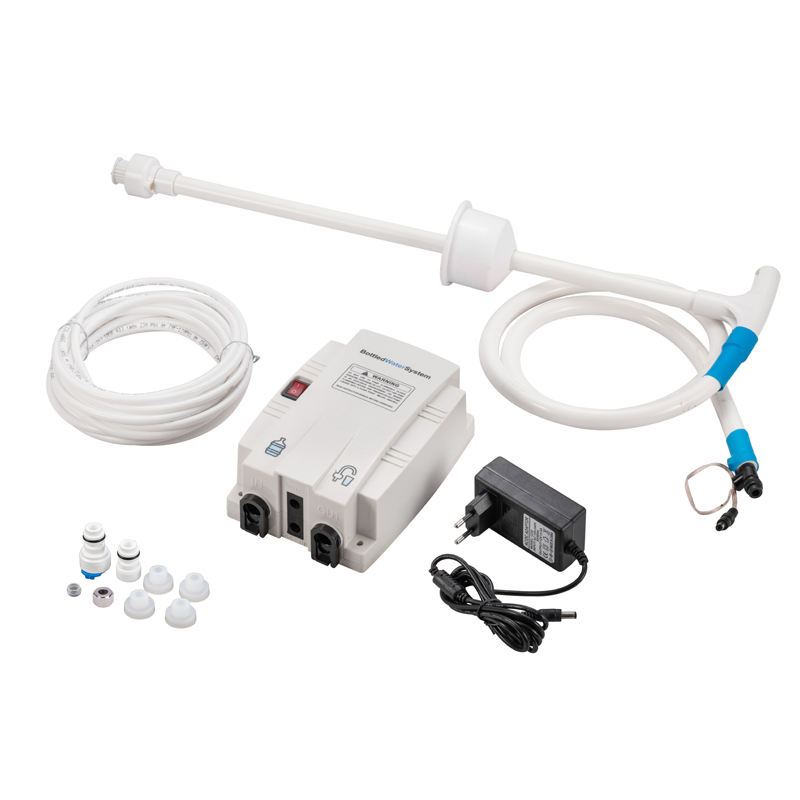

Products Photos:

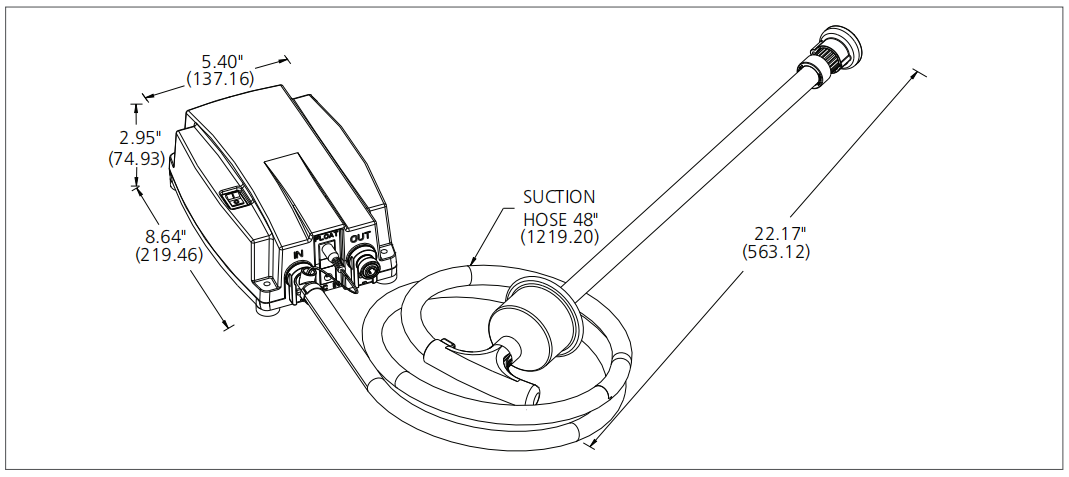

Dimension:

Our Certificates:

Frequently Asked Questions

Q1: Is the BW5000 water dispensing system easy to install?

A1: Yes, with quick disconnect ports allows for easy wand replacement in seconds

Q2: What is the quality warranty for these products?

A2: We provide 12M / 1-Year warranty, if you face the quality fault or defect, we will offer the free unit as compensation

Q3: Can I control the pump remotely?

A3: No, at the moment the device is control by switch on the products; or control by the water faucet/ beverage equipment;

Q4: What are the available working modes?

A4: It can be continued working or Intermittent working; depends on the equipment usage.

Q5: How often does the pump need maintenance?

A5: Usually it is not need maintenance; but if the device does not use long time, please check if any air in the suction pipe; using one blow gun to clean the remain water/air inside of products.
