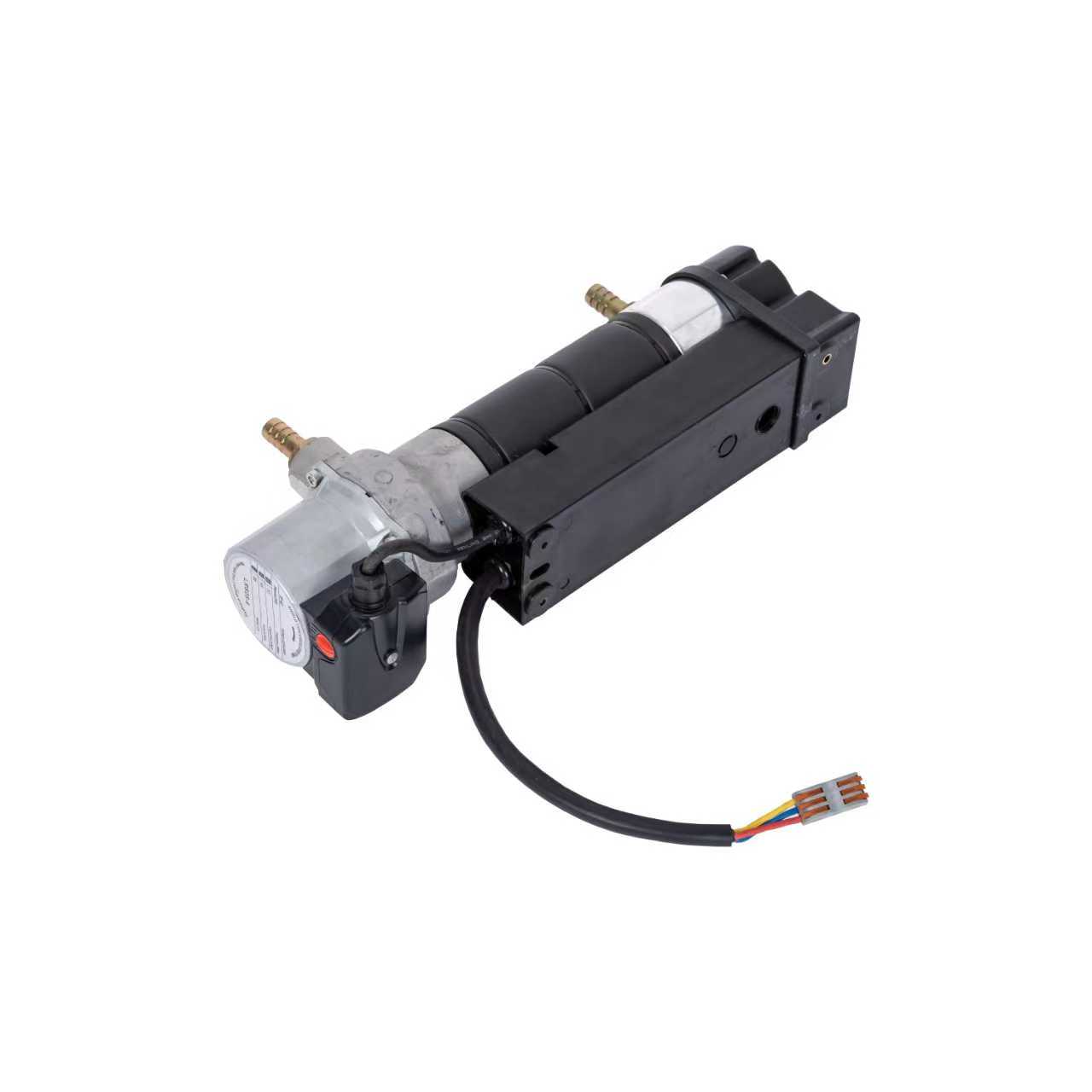

Topstart H3 Water Pump Forced Circulation Heater for Power Generation

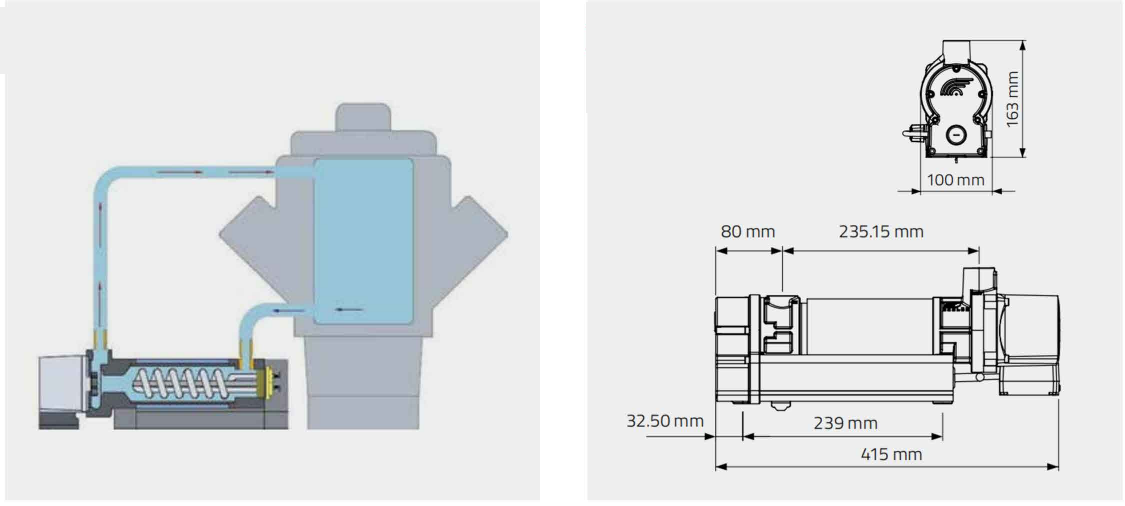

H3 Water pump forced circulating coolant heaters are installed at the lowest point in a system, the coolant can be warmed up quickly and delivered to the top of engine by the thermosphere, so as to reduce the time to reach operating temperatures and full-load acceptance. It will be great for use in power generation, diesel gensets, Gas gensets, industrial engines, trucks, etc.

Voltios :
230/115V
Regulación del termostato de arranque :
35-50℃(95-122°F)
Vatio :
2000,2500, 3000, 4000W
Diámetro de entrada/salida :
3/4“（19mm)
Hz :
50/60Hz
Pedido MOQ :
50PCS

Inquire Now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

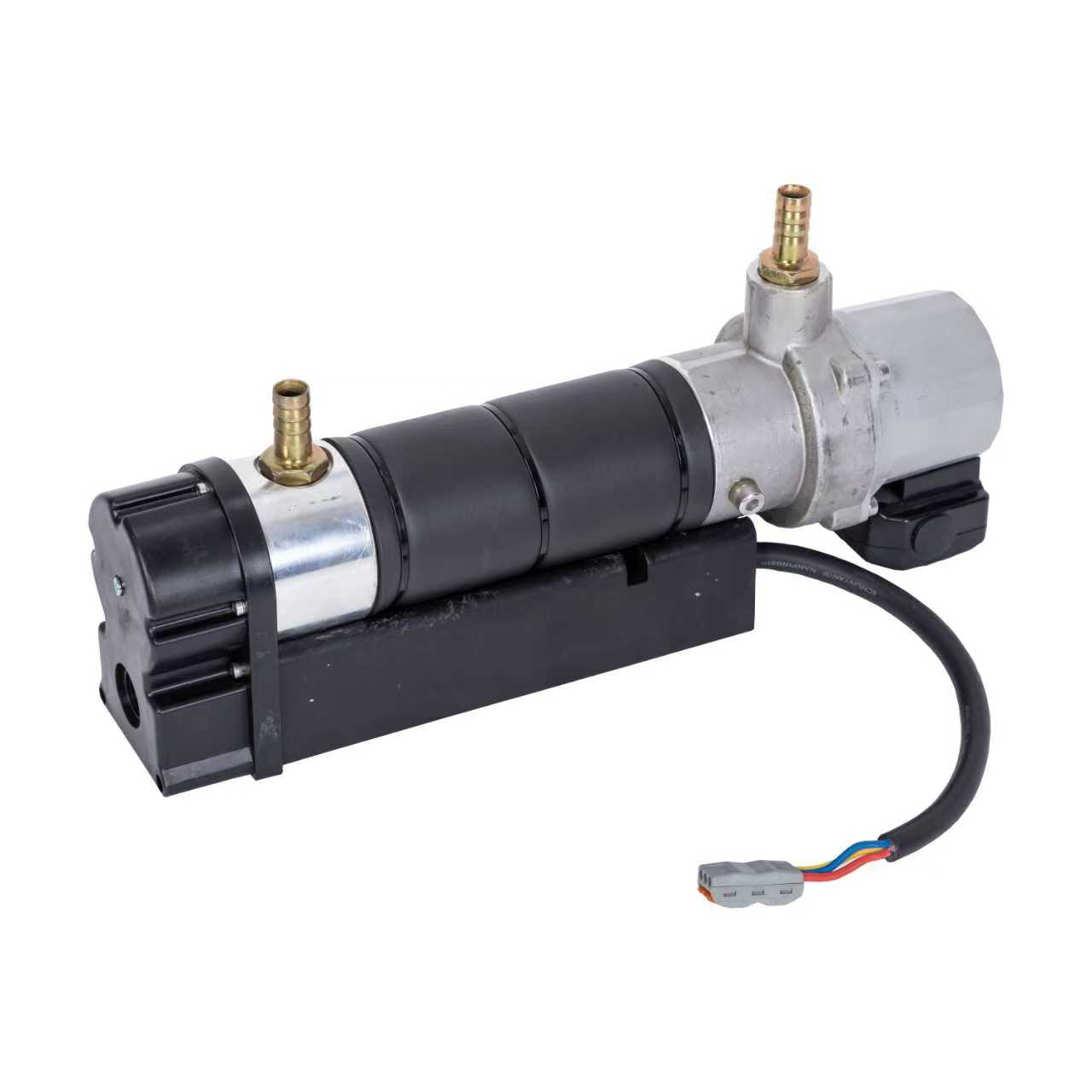

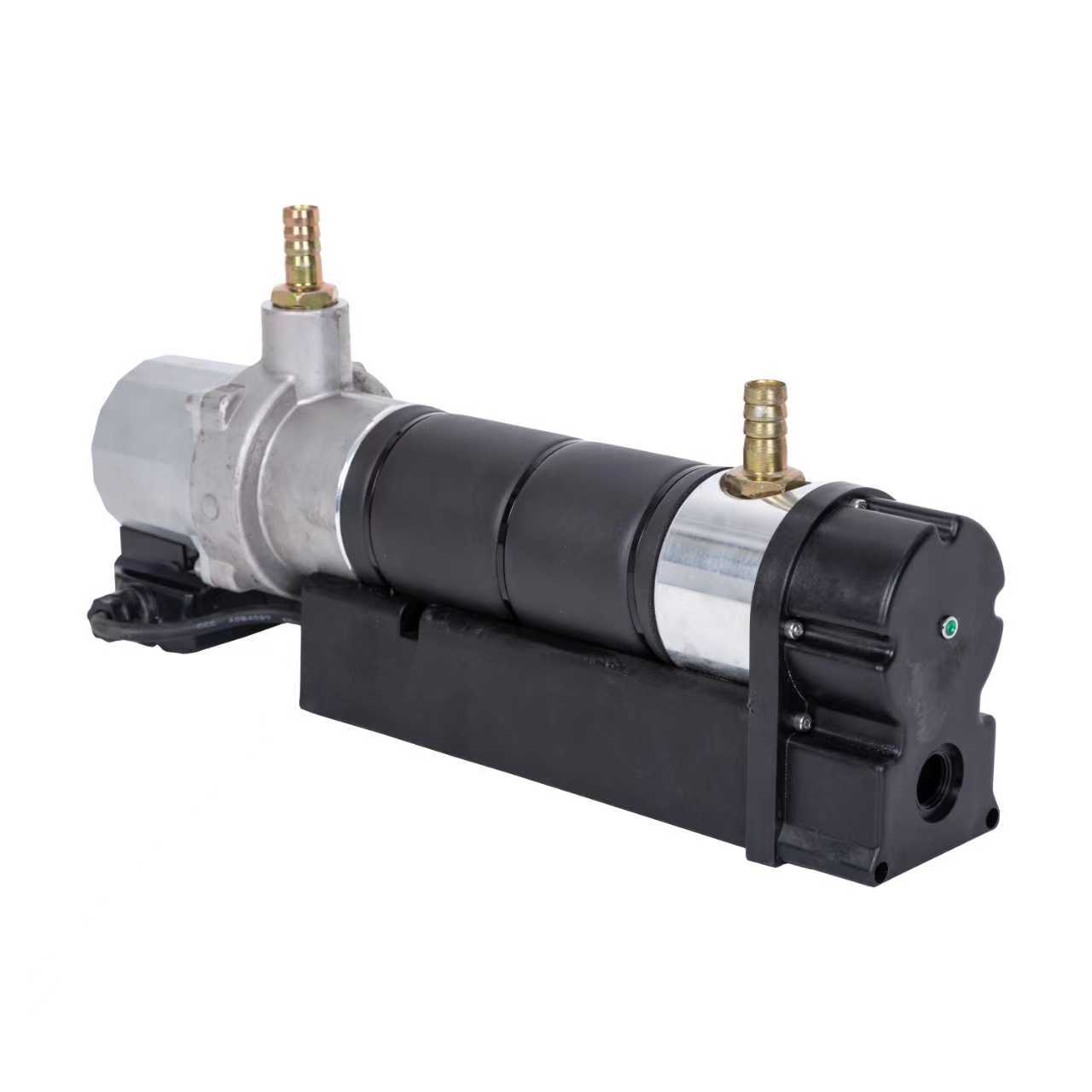

Topstart H3 Water Pump Forced Circulation Heater for Power Generation

The Topstart H3 Series Water Pump Forced Circulation Heater is a compact heating system with a circulation pump that heats the coolant liquid of a motor. This system is particularly made for generating sets, on-road engines, marine engines, and all types of vehicles located inside or outside (protected place only). The output could be from 2; 2.5,3,4.0 kW with customization by 230 or 115V AC.

Product Features:

Heating Unit

·Die-cast aluminum housing

· PA66 electrical covers and support base

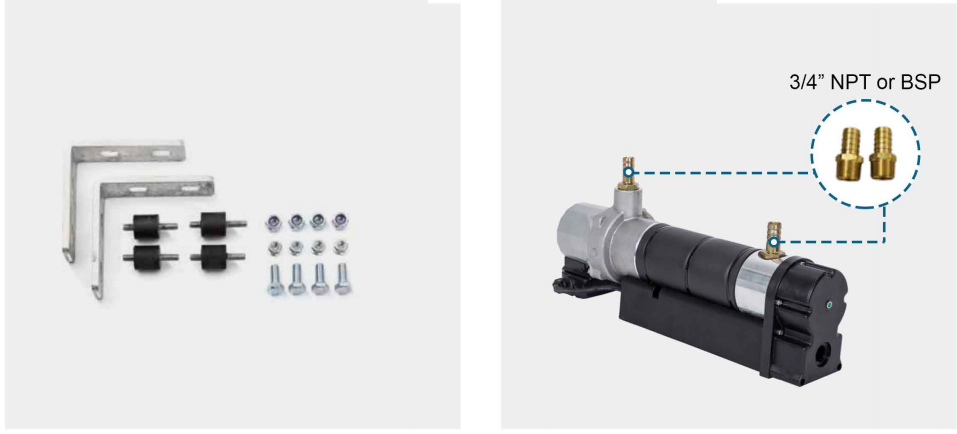

· Available with 1.5m power cord

· Heating element made of incoloy 800H

·Integrated mounting holes

Circulating Pump

·Circulation centrifugal pump

·Flow rate:2M/h

·Lit head:3m

Safety Thermostat

.110℃ Safety thermostat with

. manual reset rated at 25A to protect

. the heating element when coolant

Regulating Thermostat

.35-50°C (95-122°F)

Available Power

· 2.0 to 4KW

·120,230,240V ·50 or 60Hz

Topstart H3 Water Pump Forced Circulation Heater Heating System for Power Generation

Technical Data:

Model	Hz	Volts	Phase	Watt	Regulating Thermostat	Safety Thermostat	Cord Length	Plug Type	Inlet/Outlet Diameter
QZ 2000R	50/60	230/115	1	2000	35-50℃	110℃	1.5M	Blunt 3 Wire	3/4"(19mm)
QZ 2500R	50/60	230/115	1	2500	35-50℃	110℃	1.5M	Blunt 3 Wire	3/4"(19mm)
QZ 3000R	50/60	230/115	1	3000	35-50℃	110℃	1.5M	Blunt 3 Wire	3/4"(19mm)
QZ 4000R	50/60	230/115	1	4000	35-50℃	110℃	1.5M	Blunt 3 Wire	3/4"(19mm)
